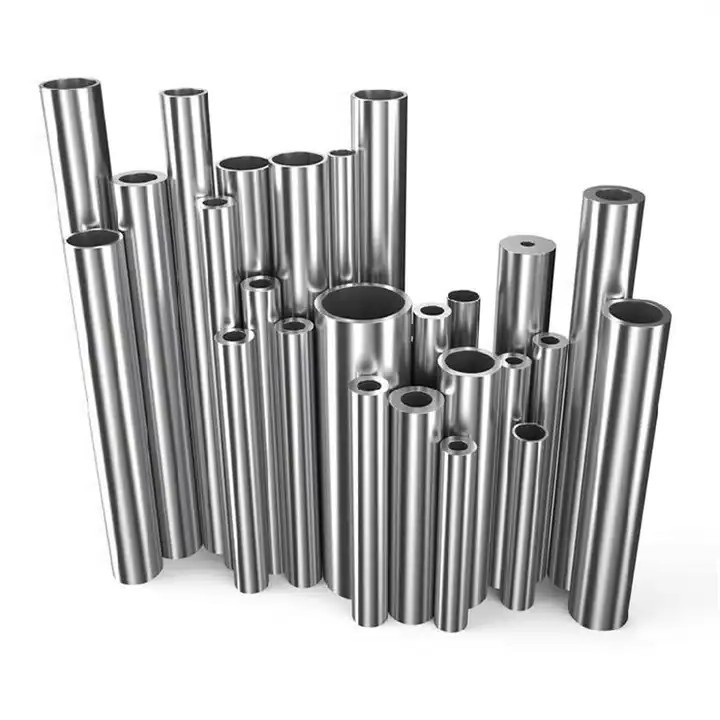

316L Cold Drawn Seamless Tubing , ASTM A312 TP316L Seamless Stainless Tube
| 原产地 | CHINA |
|---|---|
| 品牌名称 | Shangle |
| 认证 | PED,IS09001 |
| 产品型号 | 12.7 |
| 最小订货量 | Negotiable |
| 价格 | Negotiable |
| 包装 | Woven Packing |
| 交货周期 | 30DAYS |
| 付款条款 | L/C, T/T |
| 供货能力 | 500TONS/30DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
x产品详情
| Material | 304 ,304L 310 321 316 316L | Standard | AISI, ASTM, DIN, EN, GB |
|---|---|---|---|
| Shape | SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 | Technique | Cold Draw |
| Application | Oil, Petroleum/Power | Package | Woven Packing |
产品说明
ASTM A312 TP316L Stainless Steel Seamless Pipe for Oil Heat Exchangers Food Chemical
Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.
Description :
Stainless steel 316L tubing is an ultra-low carbon content version of its parent stainless steel grade 316. The lower carbon content minimizes the harmful carbide precipitation that is often the result of welding on stainless steel, as specified by ASTM for sa312 tp316L pipe. Therefore, when welding is required, 316L stainless steel grade 10 can be used in order to ensure maximum corrosion resistance of the alloy during and after welding. Its predecessor alloy, grade 316 stainless steel, is more susceptible to weld rot than stainless steel ASTM A312 Tp316L. Therefore, ASTM A312 specified stainless steel 316L ERW tubing is often a very suitable application, not only involving high temperature environments, but also high corrosion use. This is why stainless steel 316L tubing is considered very popular in many industries, especially for use in critical areas such as construction and marine projects.
In addition, this alloy grade is often referred to as marine grade due to the ability of seamless 316L stainless steel pipe to resist corrosion even in polluted marine environments. In fact, because of its corrosion resistance, 1.4436 stainless steel pipe is often used in process streams that contain chlorides or halides. The addition of molybdenum to the alloy of these pipes is what increases their resistance to general corrosion and chloride pitting.
Chemical Composition of Astm A312 TP 316 L
| C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| min. | – | – | – | – | – | 16.0 | 2.0 | 10.0 | – |
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.0 | 14.0 | 0.10 |
Mechanical Properties of Astm A213 TP 316L
| Grade | Tensile Str (MPa) min |
Yield Str 0.2% Proof (MPa) min |
Elong (% in 50mm) min |
Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316 | 515 | 205 | 40 | 95 | 217 |
| 316L | 485 | 170 | 40 | 95 | 217 |
Application:
- Heat Exchangers.
- Food preparation equipment particularly in chloride environments.
- Laboratory benches & equipment.
- Coastal architectural panelling, railings & trim.
- Boat fittings.
- Chemical containers, including for transport.
- Woven or welded screens for mining, quarrying & water filtration.
Detail Images:
