ISO9001 Stainless Steel Seamless Pipe ASME SB677 ASTM B677 TP904L UNS N08904
| 原产地 | CHINA |
|---|---|
| 品牌名称 | Shangle |
| 认证 | PED,IS09001 |
| 产品型号 | 12.7 |
| 最小订货量 | Negotiable |
| 价格 | Negotiable |
| 包装 | Woven Packing |
| 交货周期 | 30DAYS |
| 付款条款 | L/C, T/T |
| 供货能力 | 500TONS/30DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
x产品详情
| Material | 304 ,304L 310 321 316 316L | Standard | AISI, ASTM, DIN, EN, GB |
|---|---|---|---|
| Shape | SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 | Technique | Cold Draw |
| Application | Oil, Petroleum/Power | Package | Woven Packing |
产品说明
ASME SB677, ASTM B677 TP904L (UNS N08904) Stainless Steel Seamless Pipe
Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.
Description :
TP904L is a non-stabilised low carbon high alloy austenitic stainless steel. The addition of copper to this grade gives it greatly improved resistance to strong reducing acids, particularly sulphuric acid. It is also highly resistant to chloride attack - both pitting / crevice corrosion and stress corrosion cracking. This grade is non-magnetic in all conditions and has excellent weldability and formability. The austenitic structure also gives this grade excellent toughness, even down to cryogenic temperatures. 904L does have very substantial contents of the high cost ingredients nickel and molybdenum. Many of the applications in which this grade has previously performed well can now be fulfilled at lower cost by duplex stainless steel 2205 (S31803 or S32205), so it is used less commonly than in the past.
Chemical Composition:
Grade |
C | Mn | Si | P | S | Cr | Mo | Ni | Cu | |
| TP904L | min. max. |
- 0.020 |
- 2.00 |
- 1.00 |
- 0.045 |
- 0.035 |
19.0 23.0 |
4.0 5.0 |
23.0 28.0 |
1.0 2.0 |
Mechanical Properties:
Grade |
Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) | Brinell (HB) | ||||
| 904L | 490 | 220 | 35 | 70-90 typical | - |
| Rockwell Hardness value range is typical only; other values are specified limits. | |||||
Physical Properties:
Grade |
Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Co-eff of Thermal Expansion (m/m/C) | Thermal Conductivity (W/m.K) |
Specific Heat 0-100C (J/kg.K) |
Elec Resistivity (n.m) |
|||
| 0-100C | 0-315C | 0-538C | At 20C | At 500C | |||||
| TP904L | 8000 | 200 | 15 | - | - | 13 | - | 500 | 850 |
Applications:
Typical applications include
Processing plant for sulphuric, phosphoric and acetic acids
Pulp and paper processing
Components in gas scrubbing plants
Seawater cooling equipment
Oil refinery components
Wires in electrostatic precipitators

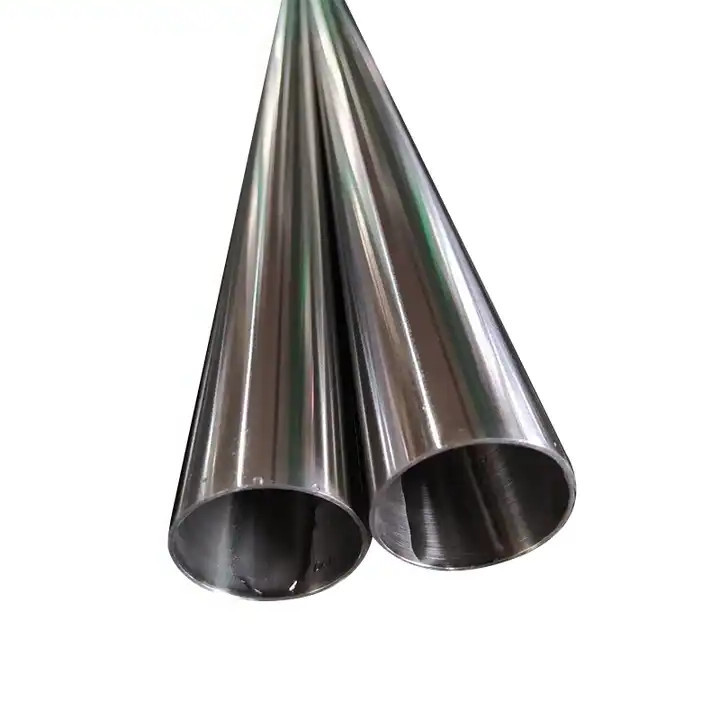

Detail Images:
