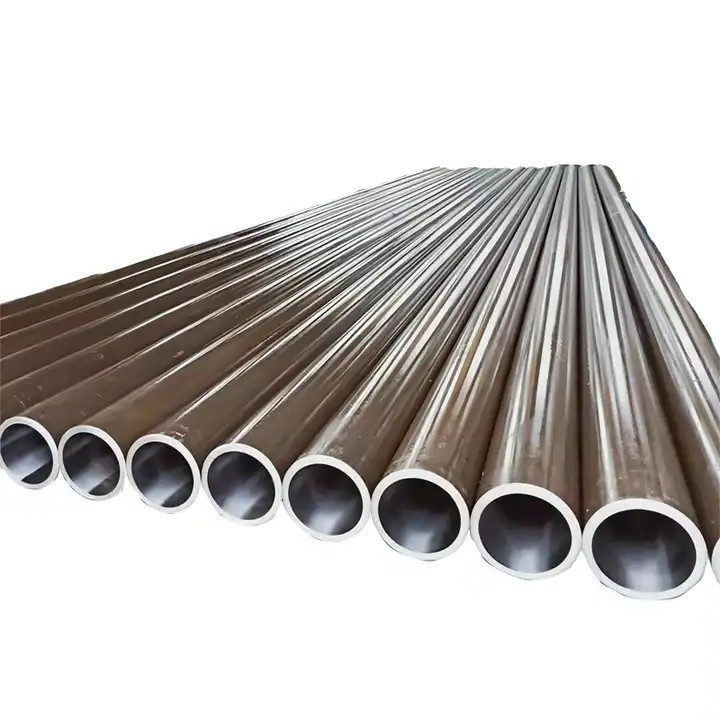

Heat Resistant 317l Stainless Steel Pipe Welded ASTM A312 TP317L Round Tube
| 原产地 | CHINA |
|---|---|
| 品牌名称 | Shangle |
| 认证 | Stainless Steel Welded Pipe |
| 产品型号 | welded tube |
| 最小订货量 | 1ton |
| 价格 | Negotiable |
| 包装 | In wooded cases or pallets,or as for clients requirement |
| 交货周期 | 7-15 working days after receiving payment |
| 付款条款 | L/C, T/T |
| 供货能力 | 5000 Ton/Tons per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
x产品详情
| Keywords | Stainless Steel Welded Tube | Usage | Industry/Construction |
|---|---|---|---|
| Tolerance | ±1% | Technique | Cold Rolled Or Hot Rolled |
| Price Term | CIF CFR FOB EX-WORK | Welding Line Type | ERW |
产品说明
Stainless Steel Welded Pipe ASTM A312 TP317L Chemical Equipment Heat resistance
Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.
Description :
The main components of ASTM A312 TP317L welded pipe are chromium, nickel, molybdenum and titanium. The chromium content is 18-20%, nickel content is 11-15%, molybdenum content is 3-4% and titanium content is 0.10-0.25%. In addition, it also contains small amounts of niobium and vanadium and other elements.
They have good corrosion resistance, especially for sulfuric acid, acidic solution and chloride medium with excellent corrosion resistance. It can be widely used in chemical, petroleum, pharmaceutical, food processing and other fields.
It has good welding properties and can be joined by conventional welding methods. Common welding methods include TIG (TIG welding), MIG (gas shielded welding), etc.
Chemical Composition of ASTM A312 TP317L Welded Pipe
| Grade | Carbon | Manganese | Silicon | Phosphorous | Sulphur | Chromium | Molybdenum | Nickel | Flerovium |
| SS 317L | 0.035 | 2.0 | 1.0 | 0.045 | 0.030 | 18.00 - 20.00 | 3.00 - 4.00 | 11.00 - 15.00 | 57.89 |
Mechanical Properties of ASTM A312 TP317L Welded Pipe
| Grade | Melting Point | Density | Yield Strength | Tensile Strength | Elongation |
| SS 317 / SS 317L | 1400 °C (2550 °F) | 7.9 g/cm3 | Psi – 30000 , MPa – 205 | Psi – 75000 , MPa – 515 | 35 % |
Equivalent of ASTM A312 TP317L Welded Pipe
| Grade | Werkstoff Nr. | Unified Numbering System | Japanese Industrial Standards | European Standards |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
Pipe Tolerance of A312 Tp 317L
| Nominal Pipe Size | Tolerance | |
| + | – | |
| 3~18, t/D≤ 5% | 22.5 | 12.5 |
| 1/8-2 1 /2 | 20.0 | 12.5 |
| 3~18, t/D> 5% | 15.0 | 12.5 |
| ≥ 20, seamless, t/D≤ 5% | 22.5 | 12.5 |
| ≥ 20, welded | 17.5 | 12.5 |
| ≥ 20, seamless, t/D> 5% | 15.0 | 12.5 |
ASTM A312 TP317L Welded Pipe APPLICATION
Automotive
Chemical
Fertilizers
Boiler
Oil & Gas
Heat exchanger
Detail Images:
