SS Stainless Steel Welded Pipe ASTM A312 TP317L 0.4mm 0.5mm 0.6m
| 原产地 | CHINA |
|---|---|
| 品牌名称 | Shangle |
| 认证 | Stainless Steel Welded Pipe |
| 产品型号 | welded tube |
| 最小订货量 | 1ton |
| 价格 | Negotiable |
| 包装 | In wooded cases or pallets,or as for clients requirement |
| 交货周期 | 7-15 working days after receiving payment |
| 付款条款 | L/C, T/T |
| 供货能力 | 5000 Ton/Tons per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
x产品详情
| Keywords | Stainless Steel Welded Tube | Usage | Industry/Construction |
|---|---|---|---|
| Tolerance | ±1% | Technique | Cold Rolled Or Hot Rolled |
| Price Term | CIF CFR FOB EX-WORK | Welding Line Type | ERW |
产品说明
ASTM A312 TP317LStainless Steel Welded Pipe SS Pipe Stainless Steel Tube
Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.
Description :
ASTM A312 TP317L Stainless Steel is a low carbon austenitic grade. The Stainless Steel TP317L Pipe consists of iron, chromium, nickel, molybdenum, manganese, silicon, phosphorous, carbon, and sulfur. Stainless Steel TP317L Pipe works well in water conditions due to the content of molybdenum. The lower carbon content makes them to be resistant to sensitization and gives them higher creep-rupture properties.
Equivalent Grades:
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
Specifications:
| Specification | ASTM A312 / ASME SA312 |
| Size | 1 / 8" NB - 24" NB |
| Types | Seamless - Hot Rolled / Cold Drawn; Welded |
| Length | Single Random, Double Random & Required Length |
| Outer Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB |
| Thickness | 0.3mm – 50 mm |
| Schedule | SCH10 - SCHXXS |
| Form | Round, Square, Rectangular, Hot Finish, Cold Drawn |
| End | Plain End, Beveled End, Treaded |
Chemical Properties:
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | |
| SS317L | min. | - | - | - | - | - | 18 | 3 | 11 |
| max. | 0.03 | 2 | 0.75 | 0.04 | 0.03 | 20 | 4 | 15 | |
Mechanical Properties:
| Tensile strength | 595 MPa - 86300 Psi |
| Yield strength | 260 MPa - 37700 Psi |
| Elongation at break (in 50 mm) | 55% |
| Hardness, Rockwell B | 85 |
Applications:
Power Plant
Paper & Pulp Industry
Chemical Industry
Food Processing Industry
Fabrication Industry
Oil and Gas Plant
Water Supply Equipments

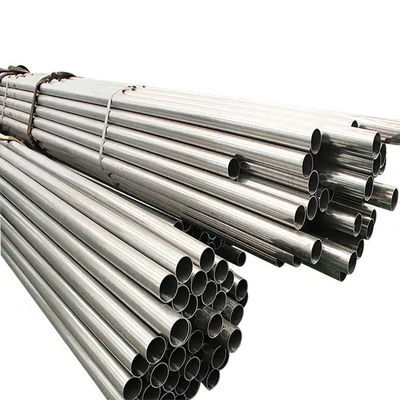

Detail Images:
