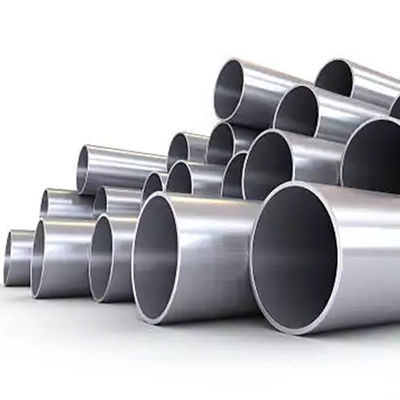

316L Stainless Steel Welded Pipe ASTM A358 CL1 TP316L For Offshore Industry
| 原产地 | CHINA |
|---|---|
| 品牌名称 | Shangle |
| 认证 | PED,IS09001 |
| 产品型号 | 12.7 |
| 最小订货量 | Negotiable |
| 价格 | Negotiable |
| 包装 | Woven Packing |
| 交货周期 | 30DAYS |
| 付款条款 | L/C, T/T |
| 供货能力 | 500TONS/30DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
x产品详情
| Material | 304 ,304L 310 321 316 316L | Standard | AISI, ASTM, DIN, EN, GB |
|---|---|---|---|
| Shape | SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 | Technique | Cold Draw |
| Application | Oil, Petroleum/Power |
产品说明
ASTM A358 CL1 TP316L Welded Stainless Steel Pipe for Offshore Industry
Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.
Description :
ASTM A358 TP316L is a standard specification for electric-fusion-welded austenitic chromium-nickel stainless steel pipe suitable for corrosive or high-temperature service, or both.316L is a low carbon version of Type 316 stainless steel, which is commonly used for its excellent corrosion resistance, especially in corrosive environments.
ASTM A358 specifies that the pipes covered by this standard should be produced by the electric-fusion-welding process. This welding method involves melting two or more pieces of metal using an electric arc. The molten metal is then fused together to form a continuous joint.
Pipe Dimensions and Sizes: ASTM A358 TP316L covers a range of pipe sizes and thicknesses. The standard includes provisions for various nominal pipe sizes, wall thicknesses, and schedules to meet different design requirements.
Chemical Composition: The chemical composition requirements for TP316L stainless steel are specified in the standard to ensure the material's corrosion resistance and other mechanical properties.
Mechanical Properties: ASTM A358 provides requirements for mechanical properties such as tensile strength, yield strength, and elongation. These properties are essential for assessing the material's performance in different applications.
Heat Treatment: The standard may specify heat treatment requirements for the TP316L pipes to achieve the desired mechanical and corrosion-resistant properties.
ASTM A358 Grade 316L Stainless Steel EFW Pipes Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 11.00 - 14.00 |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 10.00 - 14.00 |
ASTM A358 Grade 316L Stainless Steel EFW Pipes Mechanical Properties
| Grade | Tensile Str (MPa) min |
Yield Str 0.2% Proof (MPa) min |
Elong (% in 50mm) min |
Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316 | 515 | 205 | 40 | 95 | 217 |
| 316L | 485 | 170 | 40 | 95 | 217 |
ASTM A358 Grade 316 /316L Stainless Steel EFW Pipes Physical Properties
| Grade | Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Co-eff of Thermal Expansion (µm/m/°C) | Thermal Conductivity (W/m.K) |
Specific Heat 0-100°C (J/kg.K) |
Elec Resistivity (nΩ.m) |
|||
| 0-100°C | 0-315°C | 0-538°C | At 100°C | At 500°C | |||||
| 316/L | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
Specification Grade Comparison for ASTM A358 Grade 316 /316L Stainless Steel EFW Pipes
| Grade | UNS No | Old British | Euronorm | Swedish SS |
Japanese JIS |
||
| BS | En | No | Name | ||||
| 316 | S31600 | 316S31 | 58H, 58J | 1.4401 | X5CrNiMo17-12-2 | 2347 | SUS 316 |
| 316L | S31603 | 316S11 | - | 1.4404 | X2CrNiMo17-12-2 | 2348 | SUS 316L |
ASTM A358 Grade 316 Stainless Steel EFW Pipes Apllication
- Cryogenic Industry
- LNG Gas
- Offshore Industry
- Process Plants
- Sub Sea
- Refineries etc.
Detail Images:
