SMLS 4 Inch Weld Neck Flange , ASME SA182 F317L Stainless Steel Lap Joint Flange
| 原产地 | CHINA |
|---|---|
| 品牌名称 | Shangle |
| 认证 | ISO9001 PED |
| 产品型号 | 304/304L,0Cr19Ni10,EN1.4306 ect |
| 最小订货量 | Negotiable |
| 价格 | Negotiable |
| 包装 | as required |
| 交货周期 | 5-7days |
| 付款条款 | L/C, T/T |
| 供货能力 | 9999 |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
x产品详情
| Material | F304L | Type | Slip On |
|---|---|---|---|
| Standard | Ansi Asme | Other | Lap Joint Flange |
| Application | Natural Gas, Chemical, Power And Metallurgy | Size | 1/2"-24" |
| Manufacturing Way | Forging;Casting | Packing | Wooden Box |
产品说明

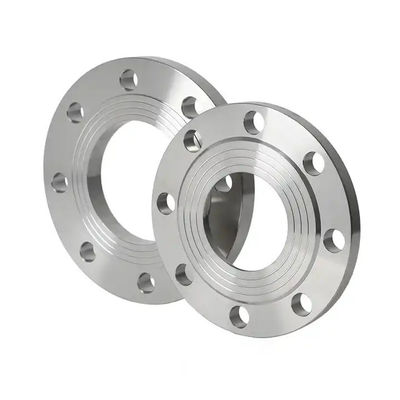

ASME SA182 F317L WN RF Stainless Steel SMLS Flange
Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.
Description:
Compared with conventional stainless steel, A182/SA182 F317L alloy has higher ductility, stress corrosion resistance, compressive strength and high temperature resistance, and stronger chemical corrosion resistance.And it is widely used in petroleum, chemical, pharmaceutical, food and other fields.
Chemical Composition of ASME SA182 F317L / UNS S31703
| ELEMENT | COMPOSITION (%) |
| Carbon | 0.03 |
| Manganese | 2.00 |
| Phosphorus | 0.045 |
| Sulfur | 0.03 |
| Silicon | 1.00 |
| Nickel | 11.0-15.0 |
| Chromium | 18.0-20.0 |
| Molybdenum | 3.0-4.0 |
Specification of ASME SA182 F317L
| Type | Welding-Neck;Blind;Thread;Plate;Slip-On;Socket-Weld,etc |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Size | 1/2″ to 48″NB |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Flange Delivery Condition | As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T, Machined |
| Flange Dimension Standard | Standard - ANSI - ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, and ANSI B16.48 |
| Flange Value Added Service | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment |
| Coating Flanges Face | Zinc Plated, Yellow Transparent, Anti-rust Paint, Cold and Hot Dip Galvanized, Oil Black Paint |
| Flange Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
Tests Required:
Tension Tests/ Hardness Tests/ Grain Size/ Corrosion Testing for Austenitic Grades/ Nondestructive Tests
Tensile and Hardness Requirements
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Reduction of Area |
| Psi – 70,000 , MPa – 485 | Psi – 25,000 , MPa – 170 | 30 % | 50 % min |
Applications
- Fabrication Industry
- Pickling Equipment
- Pollution-Control Equipment
- Natural Gas Industry
- Chemical Industry - Processing
- Oil And Gas Well Piping
- Nuclear Fuel Reprocessing
- Acid Production
- Water Pipeline Industry
Detail Images:
