F304L Stainless Steel Flange ASTM A182 F310 UNS S31000 Weld Neck RTJ
| 原产地 | CHINA |
|---|---|
| 品牌名称 | Shangle |
| 认证 | ISO9001 PED |
| 产品型号 | 304/304L,0Cr19Ni10,EN1.4306 ect |
| 最小订货量 | Negotiable |
| 价格 | Negotiable |
| 包装 | as required |
| 交货周期 | 5-7days |
| 付款条款 | L/C, T/T |
| 供货能力 | 9999 |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
x产品详情
| Material | F304L | Type | Slip On |
|---|---|---|---|
| Standard | Ansi Asme | Other | Lap Joint Flange |
| Application | Natural Gas, Chemical, Power And Metallurgy | Size | 1/2"-24" |
| Manufacturing Way | Forging;Casting | Packing | Wooden Box |
产品说明
Stainless Steel Flanges ASTM A182 F310(UNS S31000) Weld Neck RTJ Flange
Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.
Description:
Stainless Steel 310 is the combination of nickel and chromium giving them resistant to general corrosion. Due to the content of nickel in the alloy, These flanges have good strength at the most extreme weather conditions and also have excellent resistance to the creep deformation. ASTM A182 F310 Stainless Steel Flange combines excellent high temperature properties with good ductility and weldability. It is designed for high temperature service. ASTM A182 F310 Flanges is widely used for applications in the industrial, architectural, and transportation fields.
Chemical Composition:
| Ni | 19– 21 |
| Cr | 24 – 26 |
| C | 0.015 max |
| Mn | 2 max |
| P | 0.02 max |
| S | 0.015 max |
| Si | 0.15 max |
| Mo | 0.1 max |
| Fe | 54.7 min |
Mechanical Properties:
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7900 kg/m3 | 1402 °C (2555 °F) | 75000Psi, 515Mpa | 30000Psi, 205Mpa | 40 % |
Equivalent Grades:
| STANDARD | UNS | JIS | GOST | WERKSTOFF NR. | BS | EN |
| SS310 | S31000 | SUS 310 | 20Ch25N20S2 | 1.4841 | 310S24 | X15CrNi25-20 |
| Specifications | ASTM A182 / ASME SA182 |
| Flange size range | 1/2” to 48” |
| Flanges Dimensions | ANSI/ ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Flanges Standard | ANSI, AWWA, ASME, BS 10 Table D Flanges, Table E Flanges, BS, DIN, EN, GOST. |
| Class | 150#, 300#, 600#, 900#, 1500#, 2500# |
| Flange Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Large Male-Female (LMF), Flat Face (FF), Small Male-Female (SMF), Lap-Joint Face (LJF), Small Tongue, Large Tongue & Groove |
| Specialized manufacturer of | Weld Neck Ring Flanges (WNRF), Slip-On Ring Flanges (SORF), Blind Ring Flanges (BLRF), Socket Weld Ring Flanges (SWRF), Lap Joint Ring Flanges (LJRF), Ring Type Joint Flanges (RTJF), Large Diameter Flanges, Orifice Flanges |
Applications:
- Boiler & Heat Exchanger
- Petrochemical Industry
- Chemical Industry
- Nuclear Power Plant
- Oil and Gas Plant
- Pulp & Paper Industry
- Ship Building Equipments
- Paper and Pulp Plants

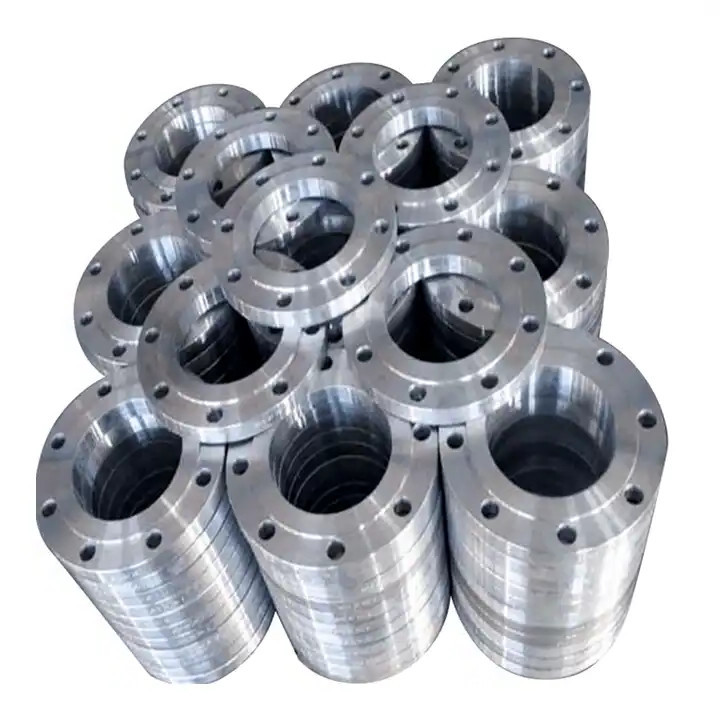

Detail Images:
