Slip On Stainless Steel Flange ASTM A182 F53 Super Duplex Weld Neck RF 1/2"-24"
| 原产地 | CHINA |
|---|---|
| 品牌名称 | Shangle |
| 认证 | ISO9001 PED |
| 产品型号 | 304/304L,0Cr19Ni10,EN1.4306 ect |
| 最小订货量 | Negotiable |
| 价格 | Negotiable |
| 包装 | as required |
| 交货周期 | 5-7days |
| 付款条款 | L/C, T/T |
| 供货能力 | 9999 |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
x产品详情
| Material | F304L | Type | Slip On |
|---|---|---|---|
| Standard | Ansi Asme | Other | Lap Joint Flange |
| Application | Natural Gas, Chemical, Power And Metallurgy | Size | 1/2"-24" |
| Manufacturing Way | Forging;Casting | Packing | Wooden Box |
产品说明

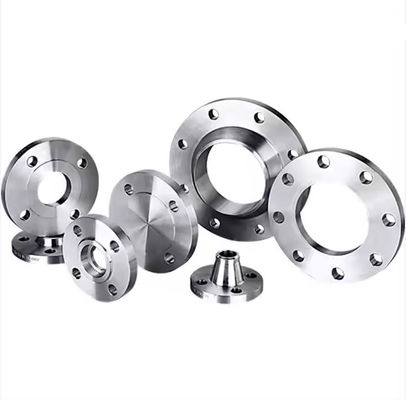

ASTM A182 F53 (UNS S32750) Super Duplex Stainless Steel Weld Neck RF Flange, Nipoflange
Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.
Description:
ASTM A182 F53 super duplex stainless steel weld neck flange Is a specification of super duplex stainless steel that display excellent corrosion resistant properties and provide excellent strength even at sub-zero temperatures. ASTM A182 UNS S32750 / F53 Super Duplex Steel Flanges have 24% chromium, 3% molybdenum, 6% nickel and carbon, manganese, silicon, sulfur, phosphorus, nitrogen and iron in the composition. These flanges can withstand high temperatures and pressure. ASTM A182 F53 super duplex stainless steel flanges are extensively utilized in the hydrocarbon, petrochemical and heavy oil refineries industries.
Chemical Composition:
| % | C | Mn | P | S | Si | Cr | Ni | Mo | N | Cu |
| F53 | 0.03 max | 1.2 max | 0.035 max | 0.015 max | 0.8 max | 24-26 | 6-8 | 3-5 | 0.3 | 0.5 max |
Mechanical Properties:
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7800 kg/m3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
Key Features:
Good ductility
Good toughness
High strength
Excellent corrosion resistance
Specification:
| Specification | ASTM A182 / ASME SA182 |
| UNS Grade | F51, F53, F55, F60 |
| Standard | ANSI, ASME, BS, DIN, EN, etc. |
| Size | 1/2” to 48″ |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
Applications:
Oil and Gas Industry
Chemical Processing Plant
Seawater Desalination
Offshore Platforms
Waste Water Treatment
Shipbuilding Equipment
Power Generation
Pharmaceutical Equipment
Construction industry
Defence Industry
